Documents
Access detailed resources to help you understand and use Beespenser Monobee effectively. Click the buttons below to download.
Monobee User Manual
Comprehensive guide to setting up and using your Monobee device.
View Document
Technical Specifications Sheet
Detailed specifications and technical information for engineers and researchers.
View
Warranty and Delivery
- Warranty:
Beespenser Monobee comes with a 1-year manufacturer warranty. This covers any defects in materials or workmanship under normal use conditions. Extended warranty plans are available upon request. - Delivery:
The first deliveries of Monobee devices will begin in July. - Customer Support:
Enjoy 24/7 technical support and onboarding assistance with every purchase. Our dedicated team is here to help you get started and ensure you achieve the best results with Monobee.
Technical Information
| Specification | Details |
|---|---|
| Step Size | 10 µm |
| Layer Thickness | ~100 µm |
| Substrate Dimensions | 220 mm x 220 mm |
| Supported Materials | Flexible (Polyimide, PET) and rigid (FR4, glass) substrates |
| Ink Compatibility | Conductive inks (silver, copper, carbon nanotubes) |
| Connectivity | USB |
| Supported Formats | Gerber |
| Power Supply | AC 200V |
| Operating Temperature | 10°C to 40°C |
| Device Dimensions | 50 cm x 40 cm x 25 cm |
| Device Weight | 20 kg |
Product Detail

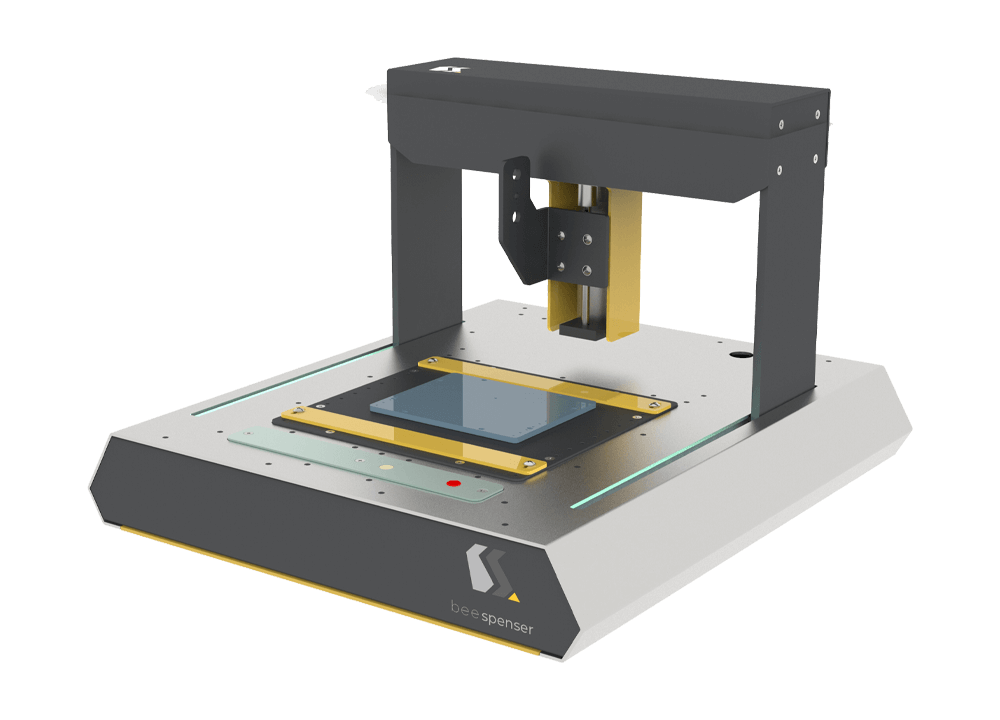

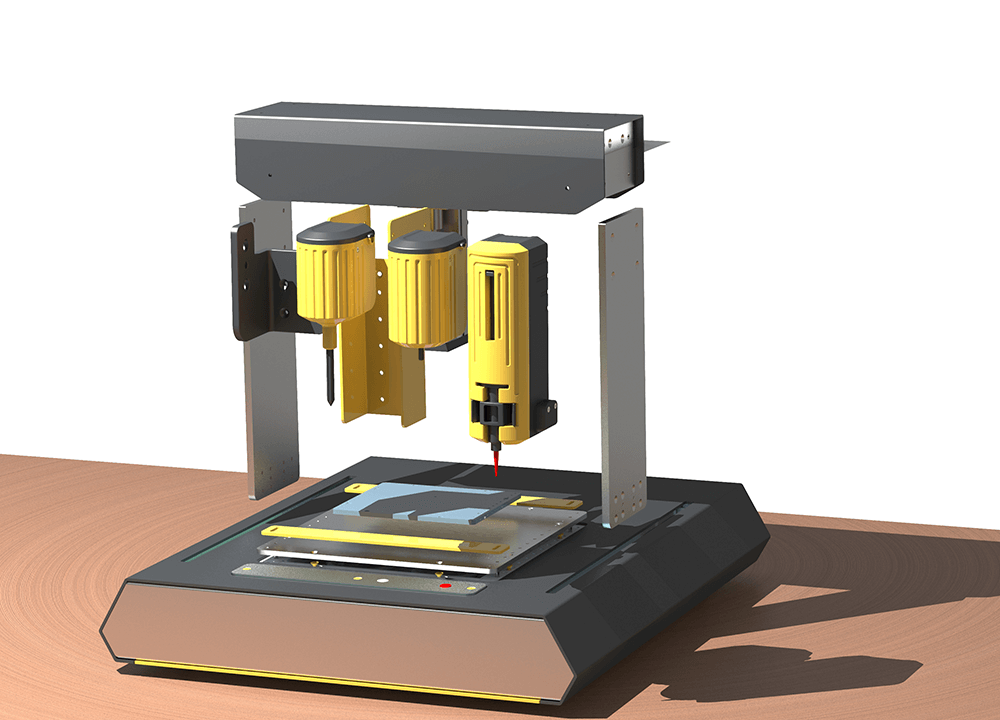

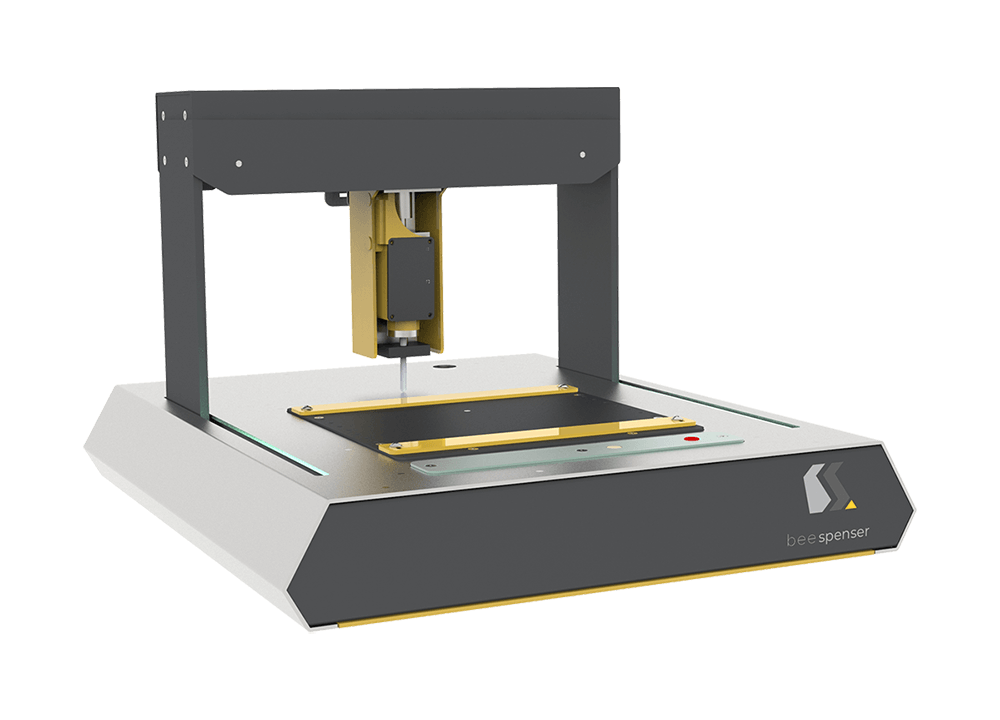

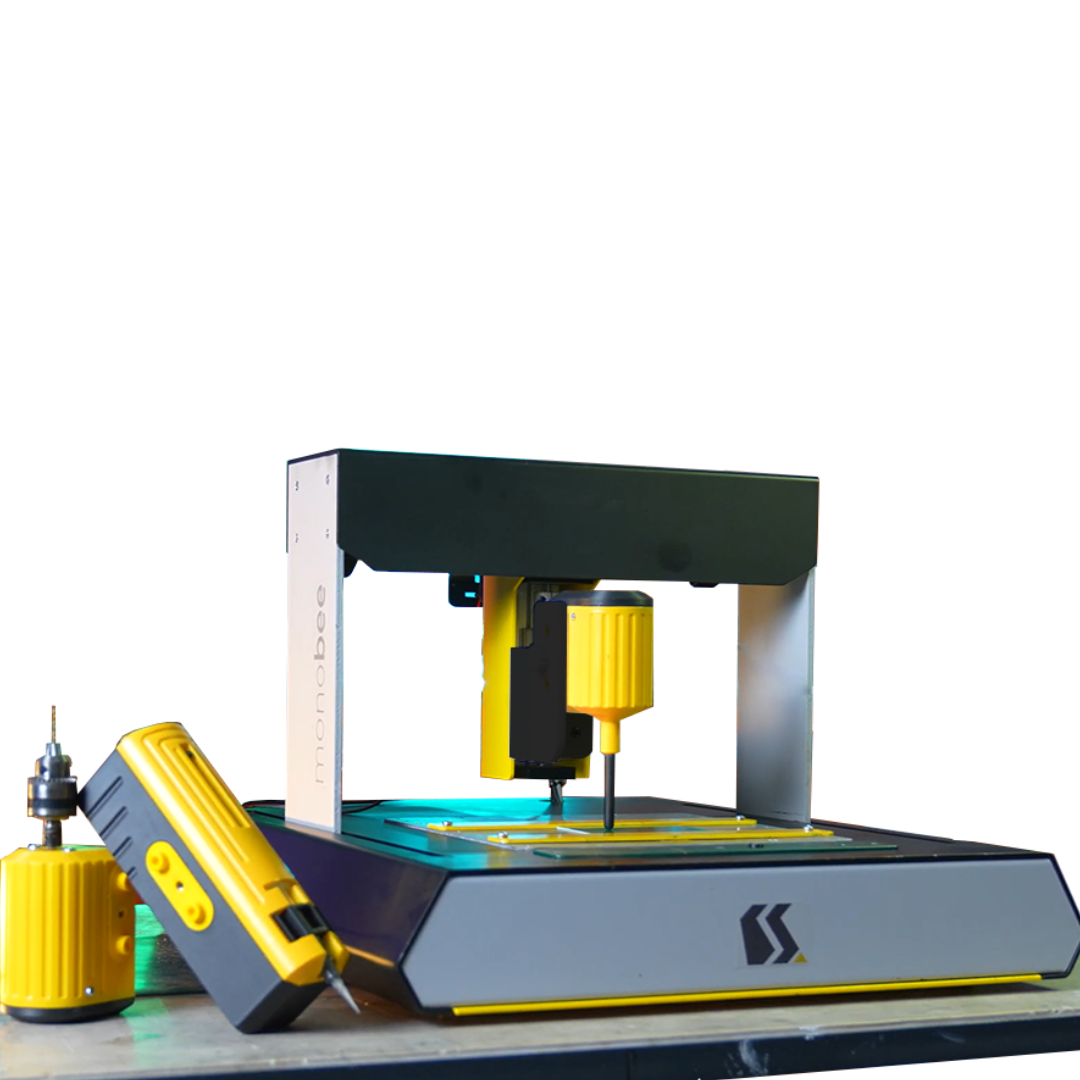

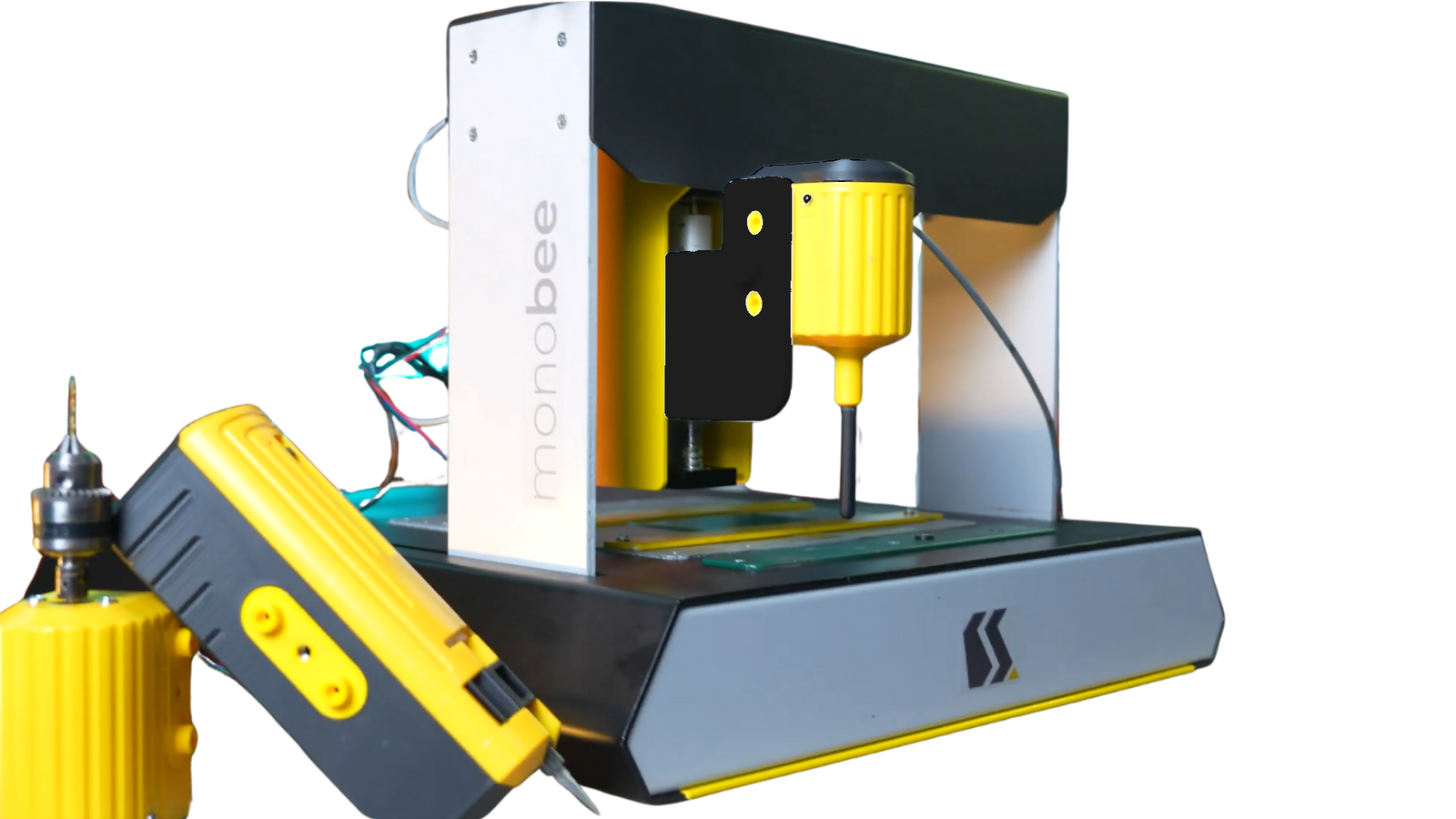

Beespenser Monobee is a state-of-the-art device designed to revolutionize the way electronic circuits are prototyped. Combining cutting-edge additive manufacturing technology and user-friendly software, Monobee empowers engineers, researchers, and innovators to create high-precision circuits quickly and cost-effectively.
Its compact design, eco-friendly approach, and flexible compatibility make it the ideal solution for various industries, including wearables, medical devices, IoT, and more.
